Grain Grinding Machine

Grain Grinding Machine

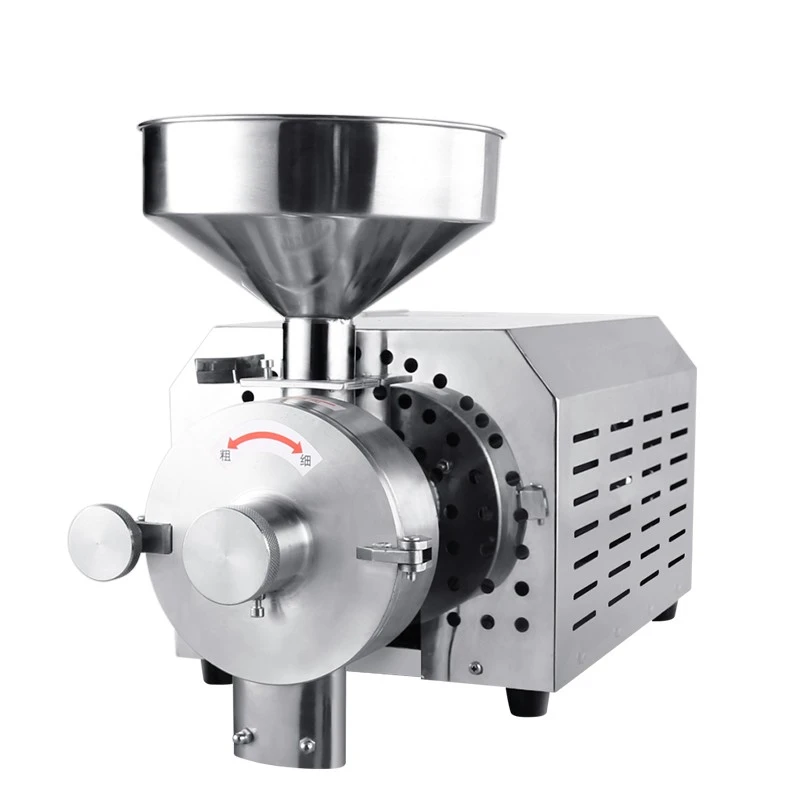

Grain Grinding Machine This multi-functional grain milling machine is made of high-quality stainless steel, safe, hygienic and durable, easy to clean and maintain. It can grind various cereals, beans and miscellaneous grains into fine powder efficiently. The machine supports adjustable rotating speed, with fast and slow grinding modes available to meet different processing needs. The grinding fineness can be freely controlled as well, helping you make coarse or delicate powder at will. With stable operation, low noise and high milling efficiency, it works smoothly without powder leakage. Simple to operate and suitable for household and small commercial use. It helps process raw materials into fine nutritious powder easily, bringing convenient and healthy daily diet.
Send Inquiry
Description
product-850-765

Grain Grinding Machine

Grain and cereal grinding mill:

Features: Small grain and cereal grinding mill with continuous feeding and fast feeding.

Screen: No

Adjustability: The feeding speed and output fineness of the small grain and cereal grinding mill are adjustable.

It has the following significant advantages:

(I) Stainless steel small grain and cereal grinding mill. This machine is made of stainless steel and equipped with a dual-capacitor asynchronous motor, providing strong power.

(II) High fineness of grain and cereal grinding – suitable for grinding various grains, Chinese medicinal materials, etc., into uniform powder of 20~200 mesh. The grain and cereal grinding mill relies on two toothed moving and stationary grinding plates to grind the materials into powder.

(III) Processing range of the small grain and cereal grinding mill: Various dried medicinal materials including hawthorn, Chinese yam, poria cocos, almond, fox nut, codonopsis, wolfberry, coix seed, he shou wu, angelica, astragalus, etc. Various grains, including sesame, soybeans, barley, red beans, lotus seeds, walnuts, rice, black rice, peanuts, corn, sorghum, buckwheat, mung beans, and oats;

(IV) Enhanced magnetic treatment – ​​The enhanced magnet at the feed inlet can attract worn iron powder, ensuring the cleanliness of the material;

(V) The 860 small grain mill has a small footprint – Due to its small design, the mill grinder is efficient, quiet, easy to operate, and produces fine powder, making it particularly suitable for home use and small processing shops.



product key technologies
product-800-800
01.

Working principle of a grain grinding mill:

When the motor of the grinding mill starts running, the connecting shaft and the grinding disc sleeved on the connecting shaft rotate together. The material to be ground enters the grinding sleeve from the hopper. The relative rotation between the auger of the grinding disc and the grinding sleeve, the crushing force causes the material to be crushed into small particles. The crushed small particles are carried into the space between the two grinding discs by the spiral motion of the auger. The relative rotation of the teeth of the grinding discs causes the material to be crushed into fine powder particles in a short time. The powder flows out from the grooves of the grinding discs, is thrown to the surroundings, and is simultaneously carried down by the scraper plate on the grinding disc and flows out from the powder outlet.

02.

Features of the Grain Grinding Mill:



1. Made of high-quality stainless steel, luxurious and elegant design.

2. Advanced design, precise structure, small footprint, and easy to move.

3. Equipped with a brand-name motor, providing powerful performance and ensuring excellent grinding results.

4. Continuous feeding production with a large feed inlet.

5. Low noise and minimal dust; fast feeding and fine grinding.

6. Simple operation, easy cleaning, and safe and hygienic.

7. Screenless design; adjustable feeding speed and output fineness.

8. No contamination to materials; strong magnet at the discharge port removes worn iron powder, ensuring material cleanliness.

product-800-800





 product parameters



Products name 860
Operating voltage 220V/380V
Power 3kw
Rotational speed 1420
Fineness 20-200
Production capacity 20-50
Machine size 57*27*45cm
Machine weight 60kg

 quipment




product-1706-1279

product-1706-1279

product-1279-1706
